20,000 lumen professional event projector
Rental Description
Christie Roadster HD20K-J 18,000 Lumens, 3-Chip DLP HD Projector Rental
Ideal for large venues - building displays, churches, classrooms, concerts, conference rooms, live events, tradeshows, and more. The Roadster HD20K-J is fitted with the broadest range of high-quality lenses – all with Intelligent Lens System (ILS™) capabilities. You can use existing stacking hardware, lenses1, lamps, input cards2 and other Christie accessories with this new line of projectors. Fly, rig, stack and ship it - the Roadster HD20K-J *performs flawlessly.
This projector couples the benefits of Xenon illumination – for the most natural color accuracy and stability - with the next level of technology, performance and flexibility. The additional standard features, an expanded lens suite and world-renowned Christie warranties, service and support, ensure the Christie Roadster HD20K-J provides high performance and more lumens per watt in the smallest chassis in its class.
*Rental includes Stacking Frame.
Includes Standard Lens: *1.5-2.0:1 SX+ / 1.4-1.8:1 HD
- Additional lens options available..please as your rep for more info*
Technology
3-chip DLP
Resolution
HD (1920 x 1080)
Brightness
20,000 center lumens
Contrast
1600-2000:1 full field | 650:1 ANSI
Illumination
3.0kW Xenon bubble lamp module
Lamp Life
750 hours typical lamp life
Height
16.5" (419 mm)
Width
24.5" (621 mm)
Depth
32.0" (815 mm)
Weight
160 lb (72.5 kg)
Features
* HD resolution (1920 x 1080)
* 20,000 center lumens
* Embedded Christie Twist™ *for image warping and edge blending
* *Variable contrast ratio of 1600-2000:1 full field | 650:1 ANSI *for crisp, detailed images
* 3.0kW Xenon bubble lamp module
* *Comprehensive Color Adjustment (CCA™) *
* *Dust-sealed engine
* Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
* Multiwindowing and screen processing (up to a 3x3 array)
* Set-up lights help users see menu displays in low-light environments
* Hybrid stacking
* User-replaceable lamps
* Built-in portrait capabilities
* Liquid cooling allows for operating temperatures up to 104°F (40°C)
* 3D capable model available in the Mirage Series
* 3D upgradable
* AutoDesk® Revit® model
1 - CT refers to the suite of lenses available for use with Christie’s legacy Xenon platform. Note: ILS capabilities are not available with CT lenses and lens mount.
2 - Legacy input cards are not compatible with Christie J Series models. The input cards supported by the J Series are compatible with Christie M Series models.
SPECIFICATIONS
* Brightness: 20,000 center (18,000 ANSI) lumens
* Contrast: 1600-2000:1 full field | 650:1 ANSI
* Uniformity: 80% brightness uniformity
Display
* Type: 3-chip 0.95” DMD
* Native resolution: HD (1920 x 1080)
Lamp
* Type: 3.0kW Xenon bubble lamp module
* Life:750 hours typical lamp life
Input
Standard
* Analog
* Dual link DVI
* SD/HD-SDI
* Video Decoder
Optional
* Analog
* Dual link DVI
* SD/HD-SDI
* Video Decoder
* Twin HDMI
Signals
* HDTV formats VGA through to QXGA (2048 x 1536)
* Accepts all current HDTV/DTV formats
* Multi-standard video decoder
* Horizontal and vertical scaling, all inputs
Pixel clock
* 165 MHz
Scan rates
* 15 kHz to 120 kHz Horizontal
* 23.97 Hz to 150 Hz Vertical

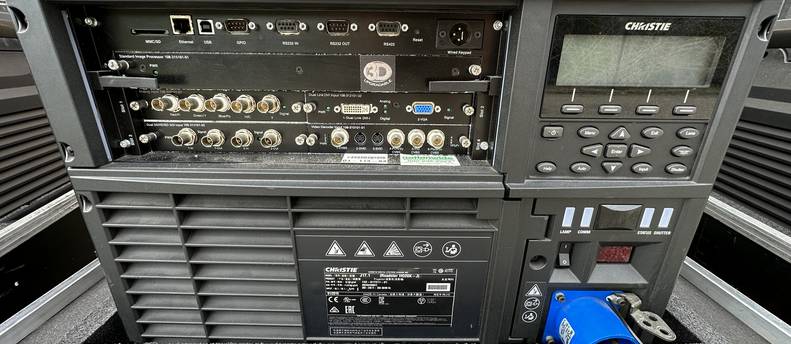

Control and networking
* RS232 In/Out
* RS422 In
* Ethernet (10/100)
* USB Device
* GPIO (RS232 9 Pin male connector)
* Built-in, backlit LCD keypad
* Remote control (with optional wired XLR connection)
Lens options
Fixed
* ILS Lens 0.73:1 SX+ / 0.67:1 HD*
* ILS Lens 1.2:1 SX+ / 1.1:1 HD
Zoom
* ILS Lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
* ILS Lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD - Included in Price. All others are $150/day or $300/wk
* ILS Lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
* ILS Lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
* ILS Lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
* ILS Lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD
Offsets
* +/- 120% Vertical
* +/- 42% Horizontal
* (* +/-35%V +/- 12%H)
* (** +/-100%V +/- 40%H)
Accessories
Standard
* IR remote
* Line cord
Optional
* 3.0kW Xenon lamp
* 3.0kW Xenon lamp bare bulb kit
* Bulb alignment tool
* Analog input card
* Dual link DVI input card
* Video decoder input card
* Dual SD/HD-SDI input card
* Twin HDMI input card
* DMX512 interface card
* ILS lens adapter kit
* Fog juice filters
* Edge-blending kit\
* Remote IR sensor
* 3D upgrade kit
* Christie AutoStack™
Enhanced feature sets
* 3D upgradable
* Embedded Christie Twist™
* Embedded image tiling
* Intelligent Lens System (ILS)
* Liquid cooling
* Advanced block artifact reduction
* ChristieNET ™ Web interface
* User-friendly, intuitive LCD keypad
* Advanced Loop-Thru twin HDMI card
* Set-up lights
* Lamp memory module
* User replaceable lamps
* Advanced, 10-bit processing
* Automatic shut off and ECO mode
* Dust-sealed light engine
* SNMP (simple network management protocol)
* DHCP (dynamic host configuration protocol)
* Hybrid stack
* Compatibility with legacy accessories
Power requirements
* Operating voltage: 200 VAC to 240 VAC @ 50/60 Hz
* Max current: 20 A @200V
* Max power: 4000 W
* Dissipation: 13,650 BTU/hr
Dimensions
* Dimensions: (L x W x H): 32.0 x 24.5 x 16.5" (815 x 621 x 419mm)
* Shipping dimensions: (L x W x H): 41.0 x 32.5 x 29.5" (1041 x 825 x 749mm)
* Weight: 160 lb (72.5 kg) (without lens)
* Shipping weight: 200 lb (91 kg)
Operating environment
* Temp: 40 to 104° (5 to 40° C)
* Humidity: 20 - 80% noncondensing
